Automated Brick Plant Drying Process Design: Single-Layer Tunnel Dryer with Rack Loading/Unloading System
Bricks Blocks Drying and Firing System
The drying and firing process adopts a two-stage setting and firing system integrated with tunnel dryer technology. The drying chamber is a tunnel dryer with dimensions of 83.65m × 22.625m. Heat for the dryer is recovered from high-temperature waste heat of fired bricks and residual heat from the tunnel kiln. An air-handling system is used to regulate the inlet air temperature and airflow volume, ensuring stable and reliable drying quality of green bricks.
The tunnel kiln features a large cross-section with an internal clear width of 6.6m and is designed with a flat ceiling structure. It is suitable for firing products with a heat value of 1200 kJ/kg.
The tunnel kiln is equipped with a complete system configuration, including a flue gas exhaust system, kiln car heat dissipation system, kiln car cooling system, gas combustion system, waste heat recovery system, rapid cooling system, and back-pressure (pressure balancing) system.
This kiln is characterized by large cross-section, high production capacity, small cross-sectional temperature difference, and excellent thermal insulation performance. In addition, the automatic kiln control system maintains stable thermal parameters throughout the firing process, effectively ensuring consistent and high-quality brick firing.

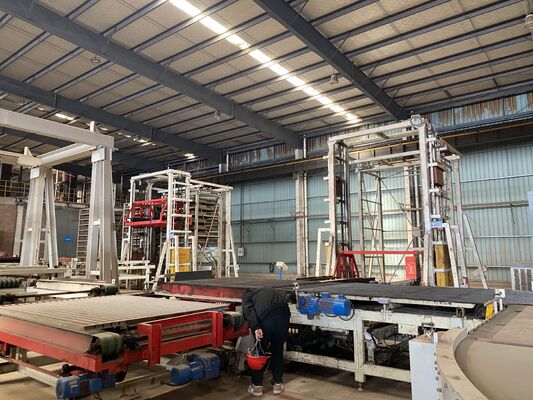

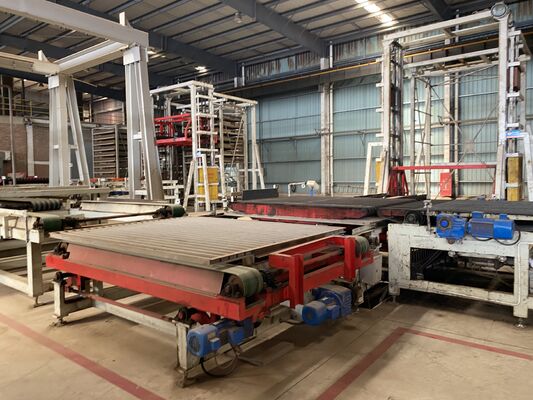

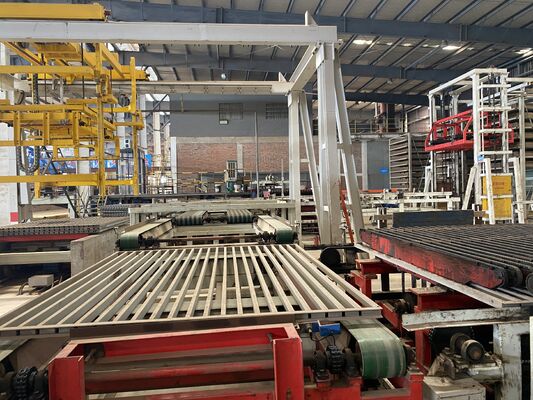

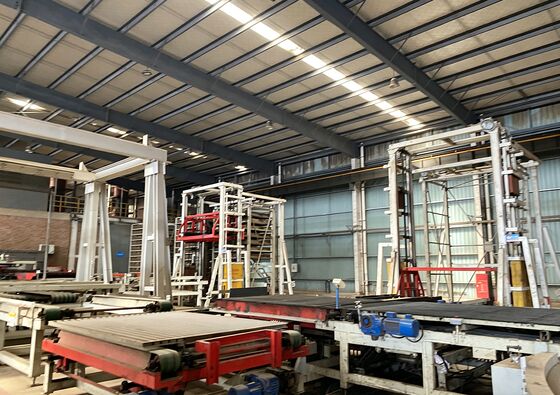

Brick Factory Tunnel Drying Line with Auto Loading & Unloading Equipment
Technical datas for reference :
| No. |
Item |
Parameter |
| 1 |
Total length |
83.65 m |
| 2 |
Carts contained in the dryer |
138 pcs |
| 3 |
Inner width |
22.125 m |
| 4 |
Inner height |
5.315 m |
| 5 |
Loading capacity per cart |
600 pcs (150×200×300 mm hollow bricks) |
| 6 |
Air-supplying temperature |
110～130 ℃ |
| 7 |
Air-exhausting temperature |
28 ℃ |
| 8 |
Moist-releasing humidity |
75~90 % |
| 9 |
Drying yield |
99 % |
| 10 |
Drying cycle |
22~26 hours |
| 11 |
Daily output |
400 tons |
| 12 |
Thermal consumption index |
180 kcal/kg |
| 13 |
Drying cart specification |
2920×2600×4795 mm |
| 14 |
Drying chamber outer dimension (L×W×H) |
83.65×22.625×5.565 m |
Brick Factory Tunnel Drying Line with Auto Loading & Unloading Equipment
BBT is a professional provider of full automatic clay brick making production lines and related equipment.
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
